Features

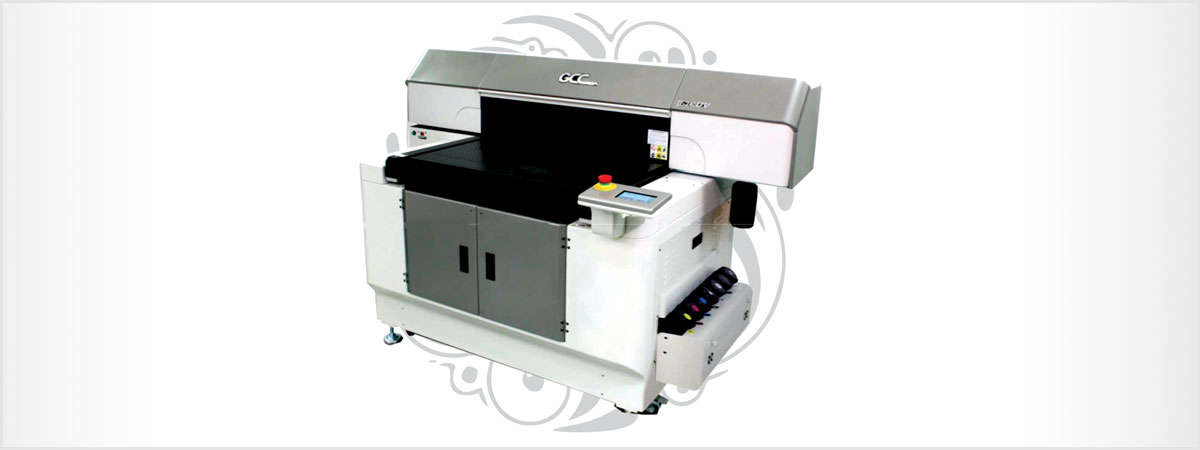

24”x20” Flatbed UV Printer
Specialized Print Heads KM512 (4pl) for UV Printing
Dual UV LED Lamps
1 liter bulk ink system
Media Thickness up to 300mm (11.8”)
Auto Media Calibration (AMC™)
Optical Anti-Crash module
Built-in down vacuum table
Color Varnish printing technology (patented)
Bundled FlexiPRINT DX - GCC Edition RIP software
Positioning Device for Indication of Printing Origin (patented)
Specification
| Printing method | On-demand Piezo head | |||
| Print head (drop size) | Japanese print head dedicated for UV printing solution,4pl | |||
| Printing area (W X L) | 24x20 in. (609.6x508mm) | |||
| Max.media size (W x L x H) | sheet | 25.6x 21.7x 11.8 in. (650x550x300mm) | ||
| pass-through | 25 x ∞ x 0.79in. (650 x ∞ x 20mm) | |||
| Weight | Less than 15 kg | |||
| Table height adjustment | AMC | |||
| Speed | Production: 4.95 m2/hr, Quality: 3.41m2/hr, Hi-density: 1.70m2/hr | |||
| Ink | Type | UV curable ink | ||
| Capacity | 1 litre | |||
| Colors | C/M/Y/K+ W/V (optional) | |||
| Ink curing unit | Dual UV LED lamps | |||
| Printing resolutions | 1440x720dpi \ 1440x1440dpi | |||
| Distance Accuracy- when printing | Error of less than +/-0.3% of distance traveled, or+/-0.3mm (0.01inch) whichever is greater | |||
| Z movement | Motorized | |||
| Control panel | Touch Screen (480x272 resolution) | |||
| Interface | Ethernet | |||
| Environment (temperature/Humidity) | 22 ℃ -30℃ (71℉-86℉) / (40%-60% humidity), higher recommended | |||
| Voltage requirement | 115/220VAC 50/60HZ | |||
| Optional | Rotary attachment Roll to Roll system |
|||
