Applicable Industry and material
- Furniture : type furniture, wood furniture, office furniture, cabinet, wood doors and window.
- Wood : Musical instrument, speakers, game cabinets, computer desk electrical counter top.
- Panel processing : plastic parts : PCB : bailing track, inner body of car, Resistance special plate, epoxy resin, PP, PE and other carbide mixed compounds.
- Decoration Industry : Acrylic, PVC, MDF, organic glass, plastic, soft metal such as copper and aluminum plate engraving processing
Technical Specification

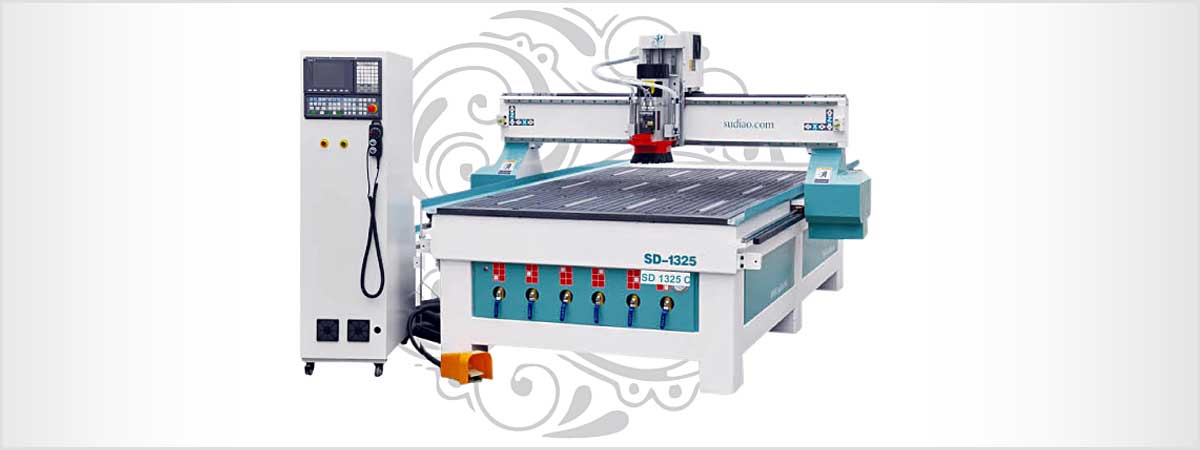

| MODEL | SD-1325/1325c | |
| Working travel | X axis, Y axis, Z axis | 1300mm, 2500mm, 200mm |
| Table Structure | T Slot Aluminum bed (vacuum optional) | |
| Orbit | HIWIN or PMI square orbit | |
| Transmission type | X,Y Rack, -Z Ball screw | |
| Working accuracy | ±0.05 | |
| Repositioning accuracy | ±0.05 | |
| Max air move speed | 30000mm/min | |
| Max working speed | 15000mm/min | |
| Spindle Parameters | Type of cooling , Power, Speed | Imported air cooling Italian HSD spindle, 6KW, 0-18000 r/min |
| Inverter | Sun far inverter | |
| Control System | G code | |
| Control System | Richauto A11 DSP Handle | |
| Oiling System | Automatic | |
| Working voltage | AC380/3PH/50HZ | |
Optional Items
Vacuum Suction Table.
750W Japan Yaskawa Servo Motor and Driver.
5.5 KW Water Vacuum Pump.
