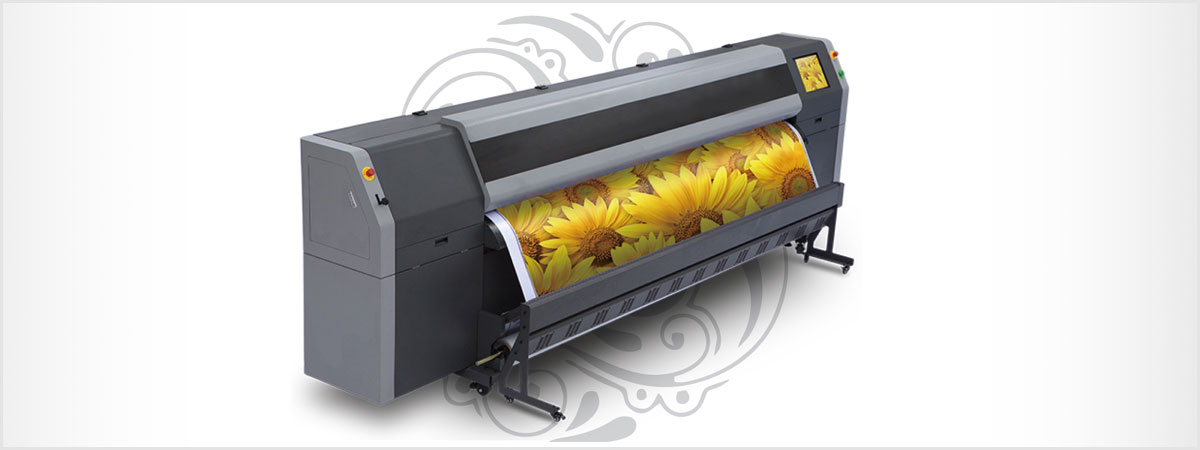

SG1024(25PL) Print head
2/4 print heads/4 colors
Draft quality up to 251 sqm/hr
Printing width up to 3.20m
Resolution up to 720 x 800dpi
| Print head |
2/4 STAR FIRE Print Heads (25pl) |
| Productivity |
|
2 Heads |
4 Heads |
|
Draft Mode (2pass) |
125sqm/h |
251sqm/h |
|
Speed (3pass) |
82sqm/h |
165sqm/h |
|
Production(4pass) |
62sqm/h |
125sqm/h |
|
Quality(8pass) |
30sqm/h |
60sqm/h |
| Print resolution |
Up to 720 x 800dpi |
| Technology |
Piezoelectric inkjet |
| Ink types |
Solvent ink |
| Ink Configuration |
Standard CMYK |
| Ink Cartidge size |
2.5L |
| Rip Software |
Photoprint Flora Edition 10.5.1 |
| Color Management |
ICC based color, adjustment curves, density adjustment |
| File format |
Tiff, Jpeg, postscript, EPS, PDF etc |
| Media / Handling |
|
| Handling |
Industry Feedng & Take-up System with Tension System |
| Roll-feed media support |
Support flexible media up to 330cm wide, with a roll dimension 30cm, up to 100kg in weight |
| Connectivity |
|
| Interfaces |
Fast standard USP Port |
| Dimensions (l x w x h) |
|
| Printer |
484x123x147cm |
| Shipping |
502x108x165cm |
| Weight |
|
| |
850KG |
| Electricity Request |
|
| Temperature |
20℃ to 30℃ |
| System |
3800W |
| Power |
|
| Heater |
3000W |
| System |
3800W |
| Requirments |
Input voltage: 210-230VAC, single-phase, 50/60Hz,16Amp(For System),
35Amp(For Heater) |
| Warranty |
|
| |
One year limited warranty, (please consult your local dealer for accurate date) |
