Features

Variable Color Configuration + Easy Upgrade

Automatic Anti-crash Sensor

Automatic Registration Pin System

White Ink Recirculating

Automatic Media Thickness Measurement System

Dual Automatic Adjustment Negative Pressure System



Technical Specification

Download Pdf

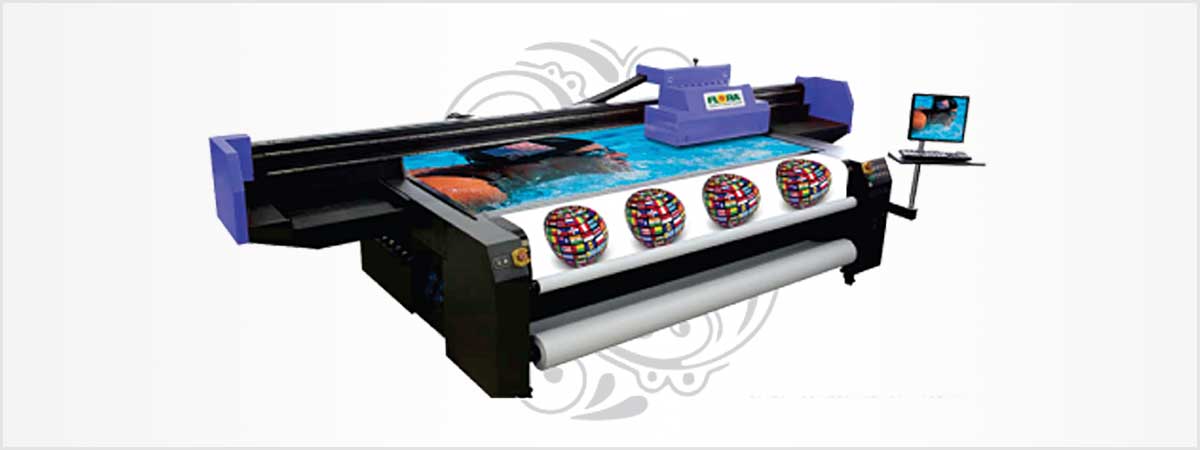

Model PP3220UV-G / PP2512UV-G EXTRA3220UV / EXTRA2512UV
Print Head 2~8 Ricoh Print Heads (7-21pl) 4~16 KM 1024i Print Heads (6-18pl)
Express 45 sqm/hr 100 sqm/hr
Production Mode 35 sqm/hr 70 sqm/hr
Quanlity Mode 24 sqm/hr 50 sqm/hr
Ultra Quality 17 sqm/hr 37 sqm/hr
Resolution Up to 605x1200 dpi Up to 726x1440 dpi
Print Technology Piezoelectric inkjet, Grayscale Technology
Ink Types LED inks
Ink Configuration 4C/6C, W&V(Optional)
Ink cartridge size 2.5 liter
Image process Software Photoprint Flora Edition 12
Color management ICC based color, adjustment curves, density adjustment
File format Tiff, Jpeg,Postscript, EPS, PDF,etc
Media
Handling True vacuum table, automatic media registration pin system for easy loading Media blow up function make it easy to unload media (Optional)
Print Size 2.00 x 3.20m 2.54 x 1.22m
Substrate Weight 50kg/m² 50kg/m²
Thickness Up to 100mm
Connectivity
Interfaces USB 3.0
Curing System
Dual shuttered UV lamps, Independent user selectable control of shutter and two power level/LED
Dimensions Printer 430 x 410 x 147cm 480 x 260 x 144cm
Shipping 430 x 230 x 165cm 500 x 216 x 150cm
Weight 2500kg(With Roll to Roll) 2000kg(With Roll to Roll)
Operating Conditions
Temperature 20℃ to 30℃
Relative Humidity 35%-65%, non-condensing(With synthetic media 40% min. recommended to avoid static electricity; with paper-based media 60% max. recommended to avoid buckling
Electricity Request
Power Rate 8000Watts
Requirement Input voltage: 200 to 240VAC, single-phase, 50/60 Hz, 32A
Warranty
One year limited warranty(Please contact your local dealer for accurate data)
