| Model |

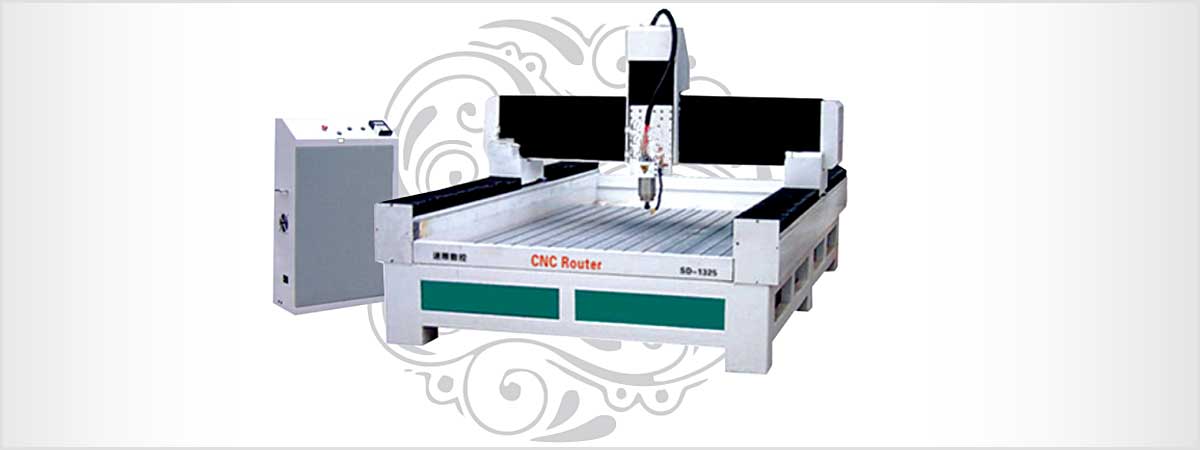

SD-1325 |
| Working Area |
1300*2500*300mm |
| XYZ Positional Accuracy |
±0.03/300mm |
| XYZ Repeatiblity Accuracy |
±0.01mm |
| Lathe Structure |
Heavy Duty Thick Steel Pipe Welding Lathe Bed |
| XY Structure |
Taiwan Hiwin Square Guide Rail & Helical Gear Rack |
| Z Structure |
Taiwan Hiwin Square Guide Rail & Taiwan TBI Ball Screw |
| Table Surface |
Aluminum Table With Water Tank |
| Gantry Structure |
Welded |
| Max. Speed |
30000mm/min |
| Max. Working Speed |
15000mm/min |
| Spindle Power Motor |
7.5KW Water Cooling Spindle |
| Spindle Speed |
0-24000RPM |
| Inverter |
7.5KW Sunfar Inverter |
| Drive Mode |
Yako 2811 Motor Driver |
| Motor |
CHINA CHUANGWEI Stepper Motor |
| Working Voltage |
AC380V,50/60Hz |
| Command |
G Code |
| Operating System |
Richauto A11 DSP Handle |
| Software |
Ucancam |
| Optional |
Dust Collecter,Automatic Lubricator,Japan Yaskawa Servo motor |
